Marble and granite are the two most common building materials in the stone industry and are suitable for decoration in the building industry. Before becoming building decoration materials, marble and granite must be processed one by one.
In the process of processing, cutting is a very important part, and stone cutting is usually carried out with a bridge cutting machine, which is a kind of high-efficiency stone equipment, which is widely used in the stone industry.
Using the bridge cutting machine to cut marble and granite, the high energy efficiency greatly improves the cutting efficiency, reduces the waste material rate, and further increases the output.
Best Marble Granite Bridge Cutting Machine Manufacturer: Wanlong Stone Machinery
China laser waterjet multi blade polishing portable marble granite cnc block saw price table quarry stone cutting machine
It has the advantages of high cutting efficiency, high slicing accuracy, and consistent thickness of the cut slabs, good flatness, high stability, and convenient operation. it is especially suitable for cutting high value granite and marble blocks.

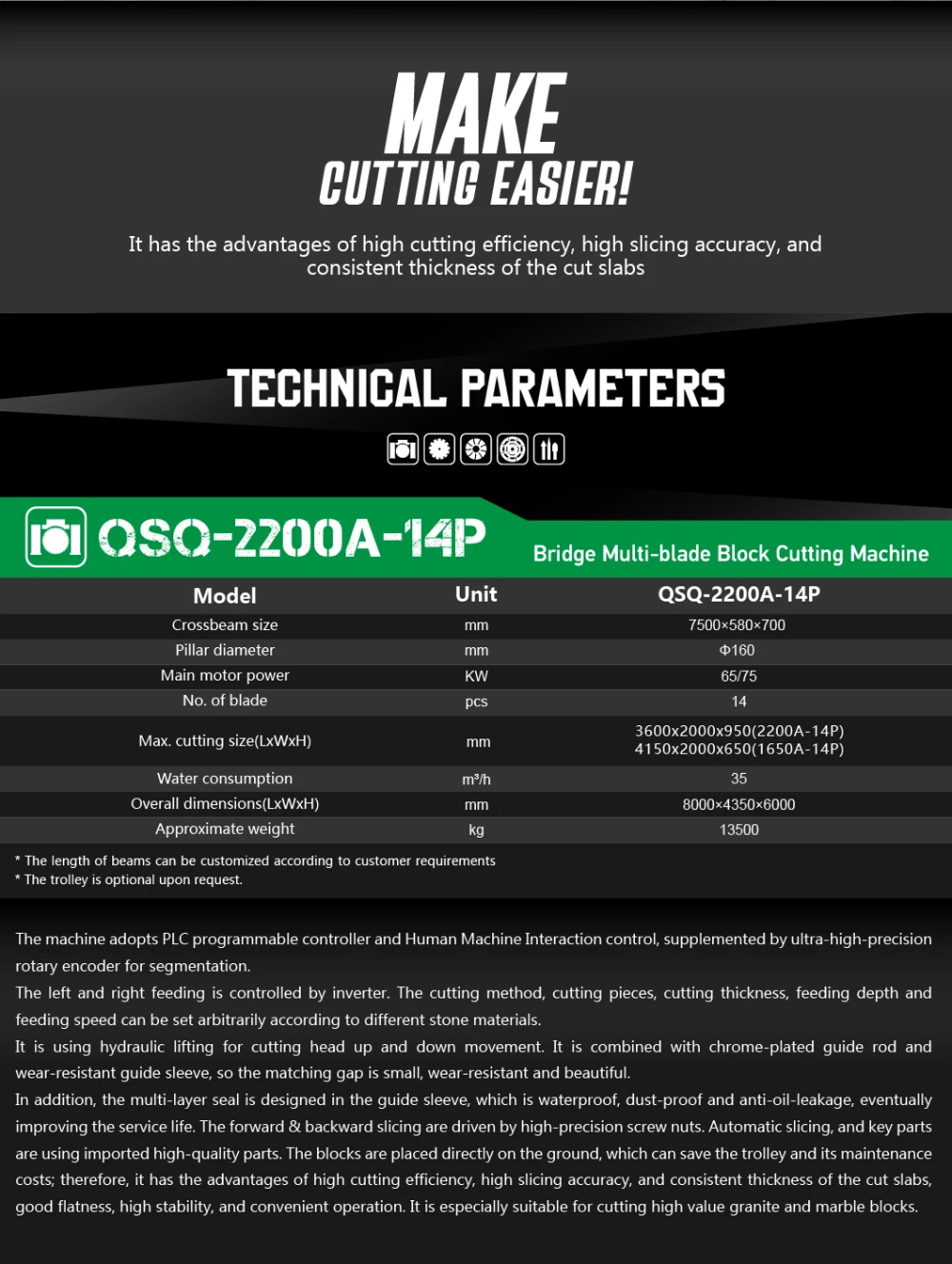

| Model |
Unit |
QSQ-2200A-14P |
| Crossbeam size |
mm |
7500*580*700 |
| Pillar Diameter |
mm |
160mm |
| Main motor power |
kw |
67/75 |
| No. of blade |
pcs |
14 |
| Max. cutting size(L-W-H) |
mm |
3600*2000*950
4150*2000*650 |
| Water consumption |
m3/h |
35 |
| Overall dimensions(L-W-H) |
mm |
8000*4350*6000 |
| Approximate weight |
kg |
13500 |
The length of beams can be customized according to customer requirements
The trolley is optional upon request.

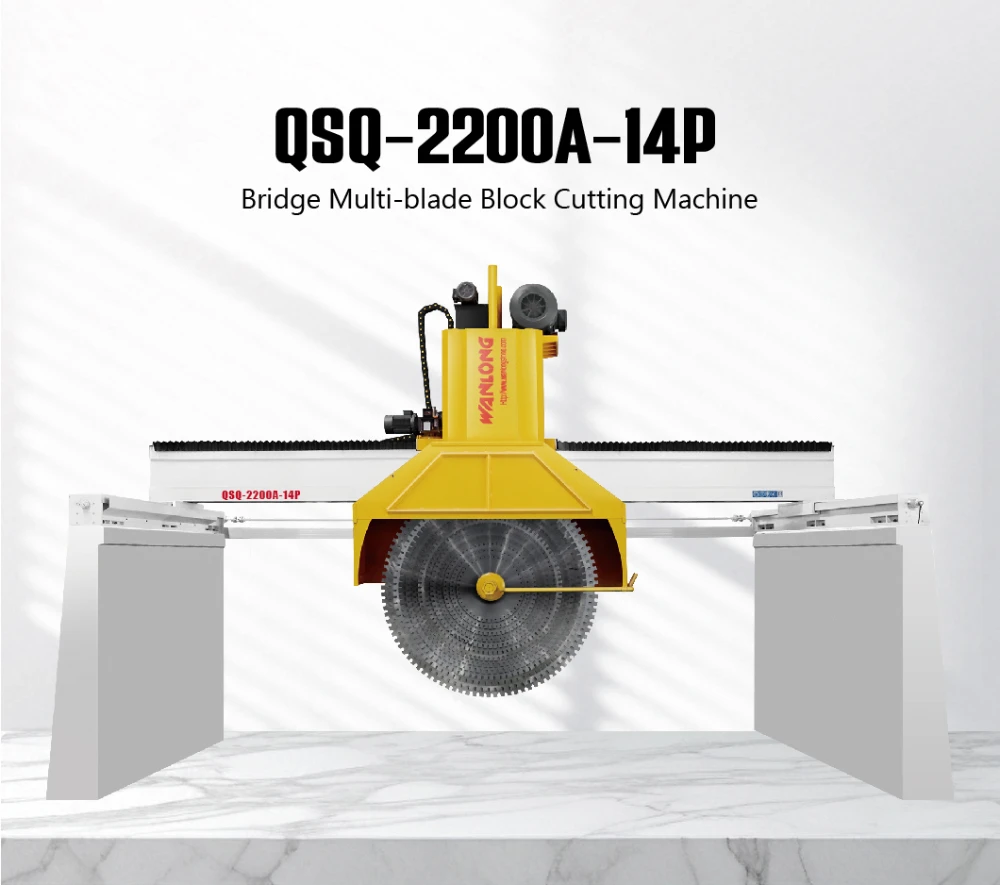

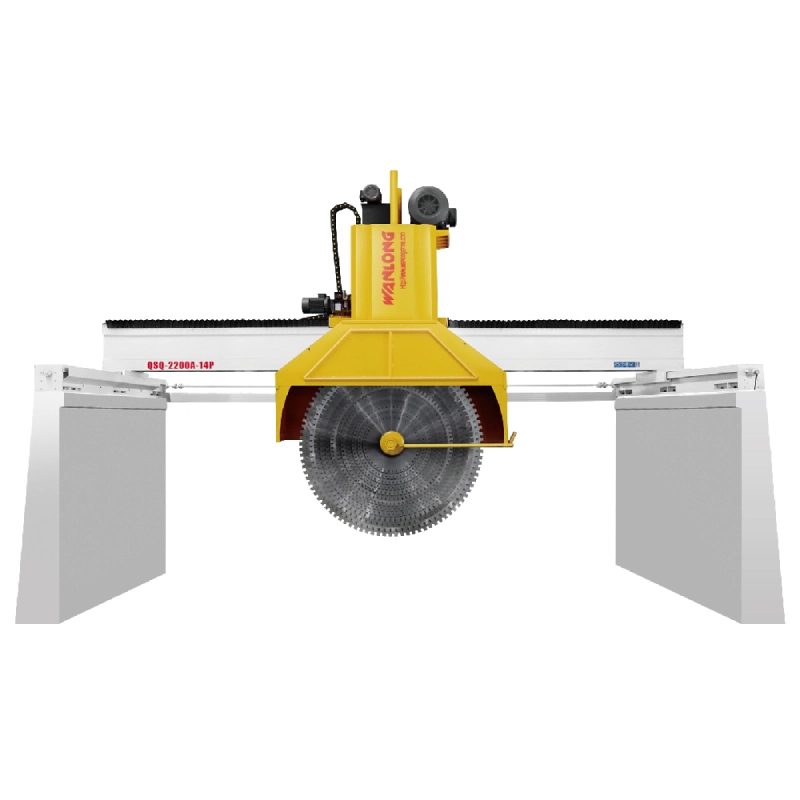

Product features of QSQ-2200A-14P Bridge Multi-blade Block Cutting Machine:

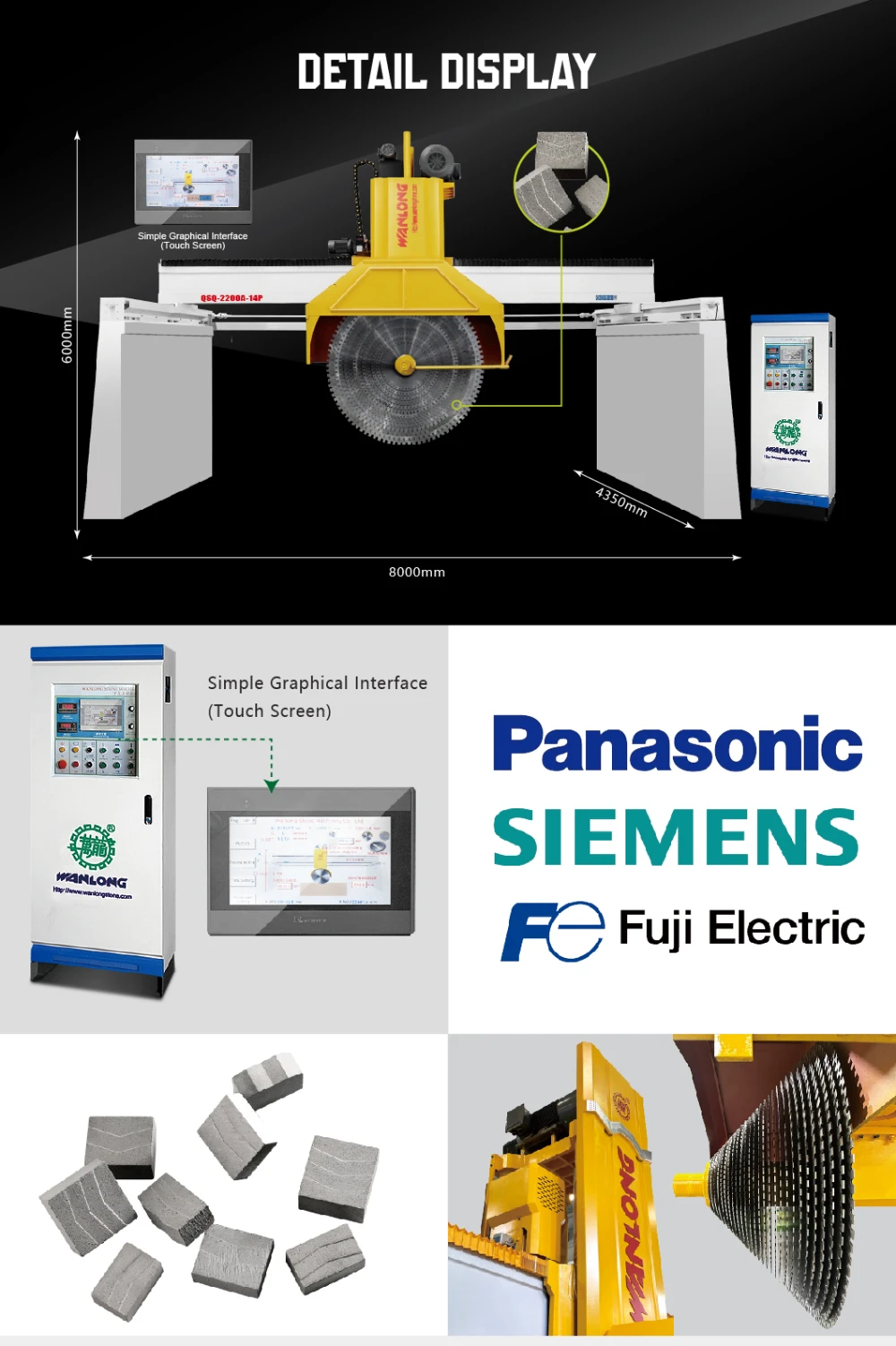

The machine adopts PLC programmable controller and Human Machine Interaction control, supplemented by ultra-high-precision rotary encoder for seqmentation.
The left and right feeding is controlled by inverter. The cutting method, cutting pieces, cutting thickness, feeding depth and feeding speed can be set arbitrarily according to different stone materials.

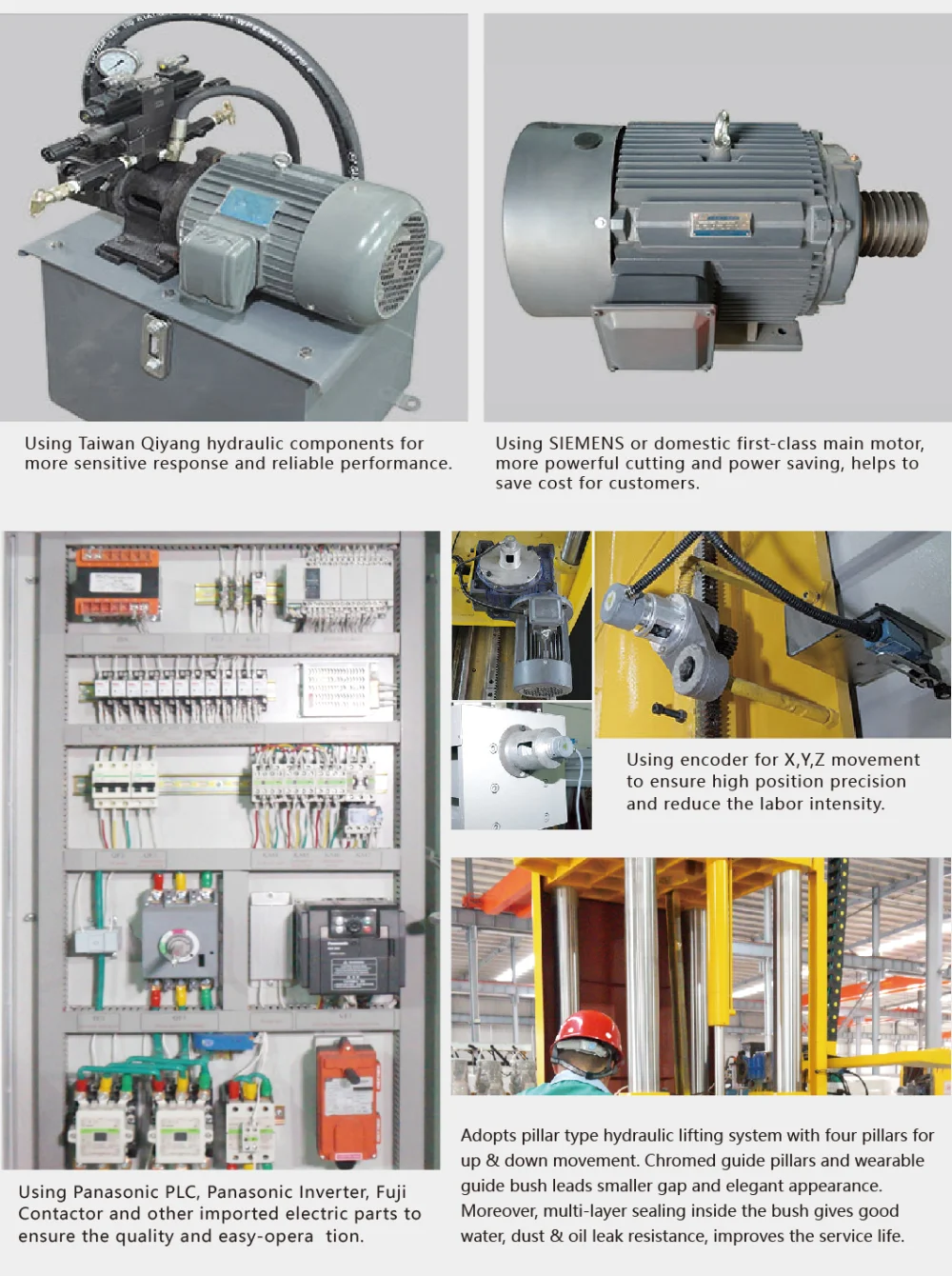

It is using hydraulic lifting for cutting head up and down movement. It is combined with chrome-plated guide rod and wear-resistant guide sleeve, so the matching gap is small, wear-resistant and beautiful.
In addition, the multi-layer seal is designed in the guide sleeve,which is waterproof, dust-proof and anti-oil-leakage, eventually improving the service life. The forward & backward slicing are driven by high-precision screw nuts. Automatic slicing, and key parts are using imported high-quality parts. The blocks are placed directly on the ground, which can save the trolley and its maintenance costs; therefore, it has the advantages of high cutting efficiency, high slicing accuracy, and consistent thickness of the cut slabs, good flatness, high stability, and convenient operation. It is especially suitable for cutting high value granite and marble blocks.
Wanlong Group has a strong sales (pre-sales and after-sales) service team
1. Inquiry and consultation support.
2. Check our factory.
3. Visit the local stone factory to understand the performance of our machine
4. After-sales service
Dispatch technicians overseas for machine installation and training on how to operate the machine.
5. Warranty 12 months
F: If we have already paid, how long will it take to ship the goods?
A: It mainly depends on the quantity of the order. Our monthly production capacity of diamond cutter heads is as high as 3,000,000 pieces. Generally speaking, we can ship the goods within one week after receiving the payment. Specially requested products will be negotiated separately. If you place an order, Wanlong will inform you of an approximate shipping date.
F: If our products are not used well, what should we do?
A: Please provide me with specific feedback information. Analyze the reason: trying to find a solution. If it is Wanlong’s problem and cannot be solved, Wanlong will replace it.
F: How can I buy the most suitable diamond saw blade?
A: 1. Is the saw blade used for sawing, slicing, or other purposes?
- The hardness, abrasiveness and granularity of the stone. If possible, please provide samples or pictures.
- The machine used for saw blade is bridge cutting, table cutting or brick cutting.
- The main motor of the machine, the number of revolutions per minute of the shaft, the cutting depth and the cutting depth.
- The thickness of the base body with the proper size of the cutter head. 6 Basic requirements for the life of the saw blade The number of squares cut by each saw blade.
F: How do I know how much freight I need to pay?
A: To calculate the total weight of your goods, first choose a transportation method, confirm the current freight rate, then calculate the freight, and finally confirm the other costs and add them up.
F: After we pay, how long can we arrange the shipping?
A: It depends on the order quantity. Our monthly output of cutter heads is: 3 million. Usually, we will ship the goods within one week of receiving the payment. Special products, special consultations. Wanlong will inform the approximate sailing schedule before you place the order.
F: What is the minimum order quantity?
A: Any number of sample sheets is fine. For regular orders, Wanlong hopes that the weight of the ordered products can reach more than 45 kg (airlines have strict requirements on weight, in addition, the freight for goods under 45 kg is very high)
F: If we want to buy your products, can we provide free samples?
A: Wanlong never provides free cutter heads. This is a high-value product per unit, so very few diamond tool companies will provide free samples. If you want to test, please buy. According to Wanlong’s many years of operating history, people will pay more attention to the tools they get after payment. Although the number and amount of samples are relatively small, its cost is higher than that of ordinary products.
F: We sell saw blades in large quantities in our country, and we only sell them under our own brand logo. Can you put our logo on the saw blade?
A: We hope that you can mark Wanlong on the saw blade, because Wanlong is also a well-known brand in the diamond industry. However, if you insist on printing your company’s logo, we will do it for you, but one percent of the entire saw blade amount will be charged.
F: We plan to buy diamond tools from your company, but how can we confirm your quality?
A: Nowadays, many people like to use Chinese products. Although the quality is not the best, the price is very competitive. Wanlong is a professional with more than 20 years of history in the stone tool industry.
F: Do you have a stone cutter for cutting thin slabs?
A: Yes, we have a slab cutter-infrared automatic bridge stone cutter and integrated bridge stone cutter with the additional function of inclined cutting (0-50 degrees), you can choose manual or automatic. This is an optional feature.
F: Which is the best finger drill or oblique straight tooth with curved teeth?
A: Oblique straight tooth finger drill, this design is conducive to chip removal and water flow.
F: What is the difference between the cutting objects of turbine blades and agglomerated dry slices?
A: Compared with agglomerated dry slices, turbine slices have better continuity when cutting, and are suitable for cutting marble. Agglomerated dry slicing, suitable for cutting granite.
F: What is the difference between dry and wet slices?
A: The main difference is: the way the diamond tip is welded to the substrate is different. Wet cutting uses a brazing process. Half of the dry cutting is laser welding. Laser welding has a higher melting point. In addition to the welding method, another difference is: the carcass. The carcass of dry slices is relatively soft, making it easier to cut without cooling water.
