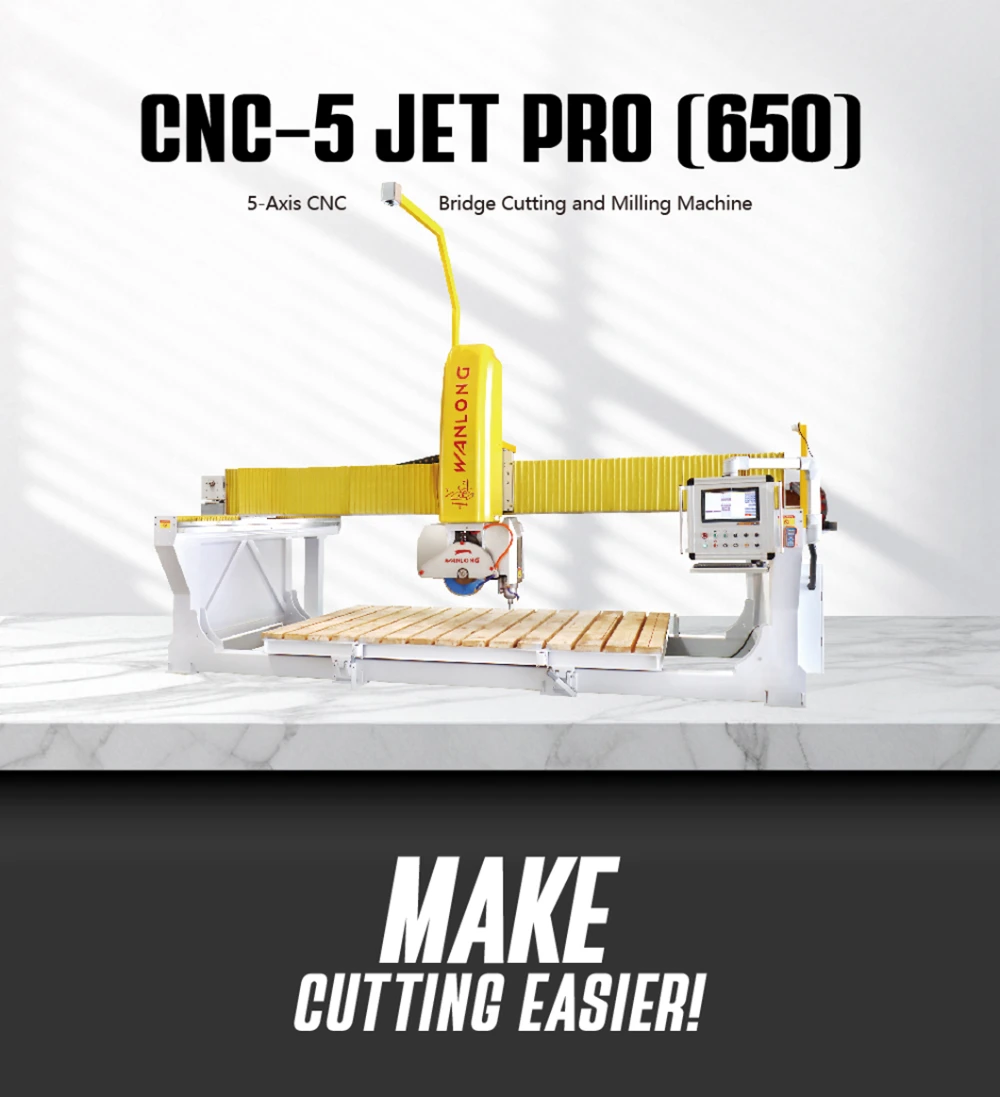

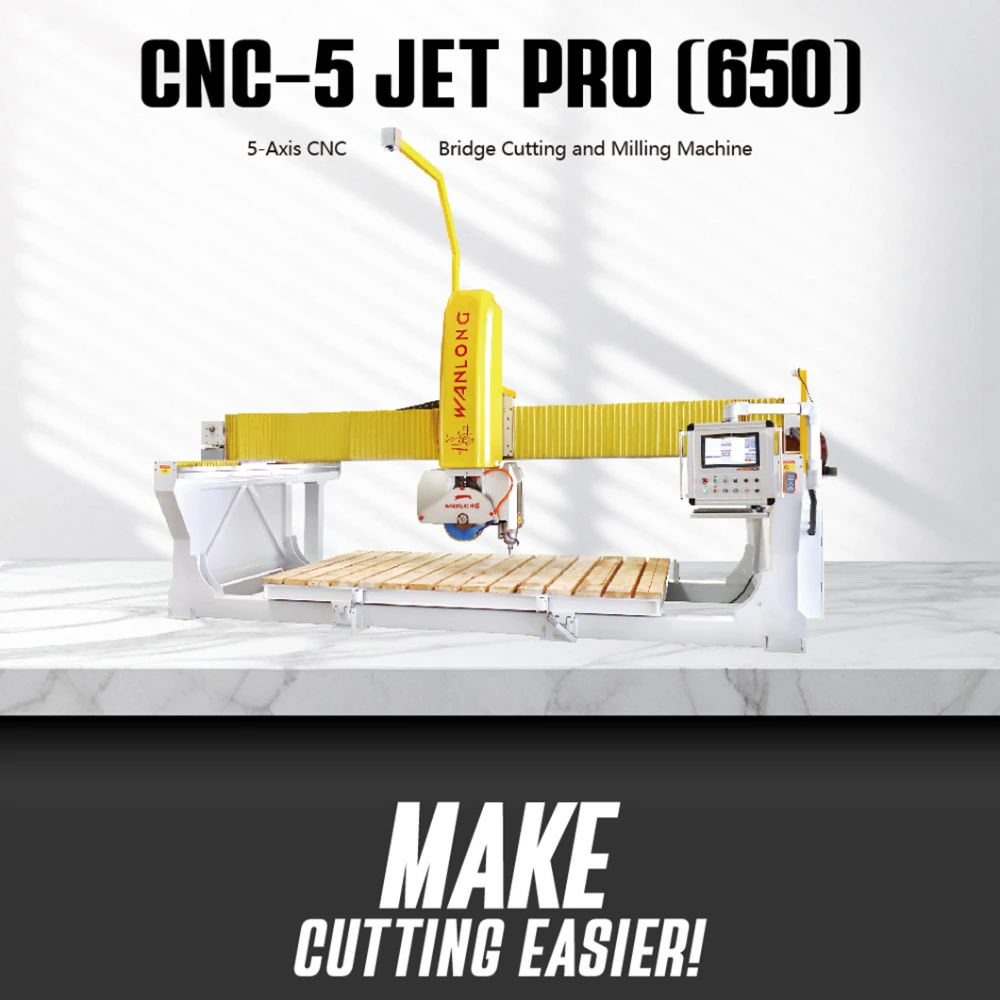

CNC-5 Jet Pro 650 5-Axis CNC Bridge Cutting And Milling

1 CNC control system, CAD, CAM drawing software and the digital servo motor

2 Take photos and position, optimize typesetting that improve the material yield

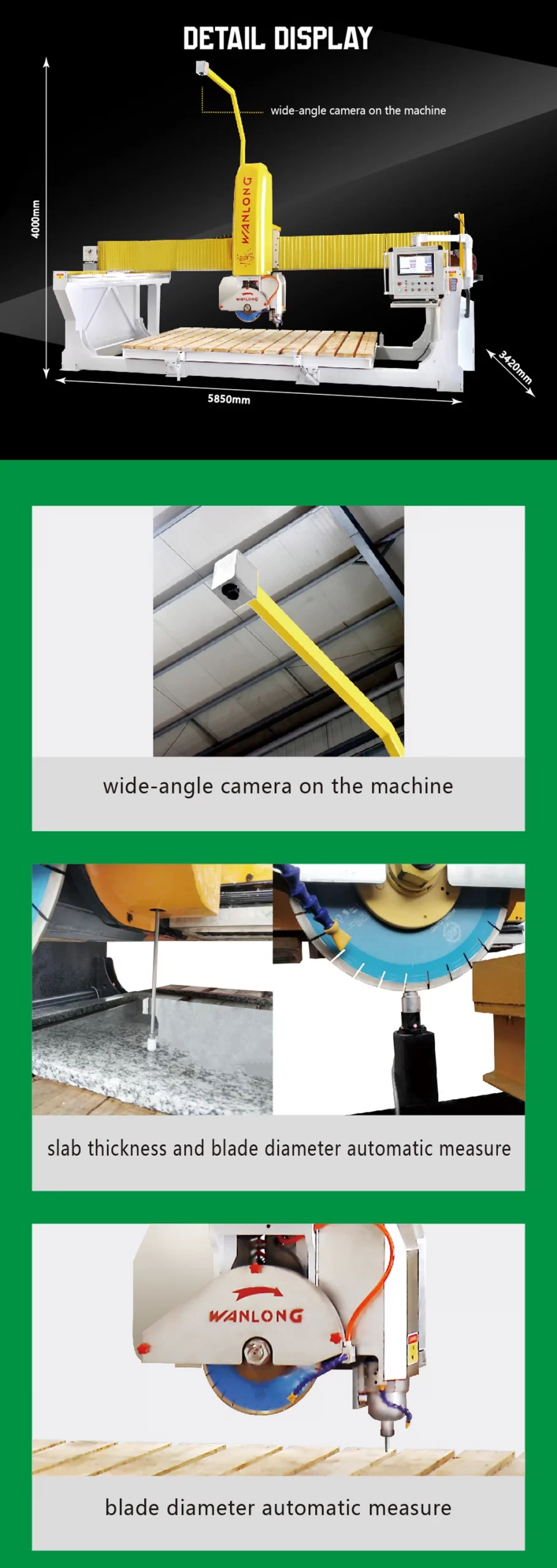

3 Use wide-angle camera that occupy small the space (height)

4 With high-speed milling processing, fast RPM speed, high efficiency electric spindle

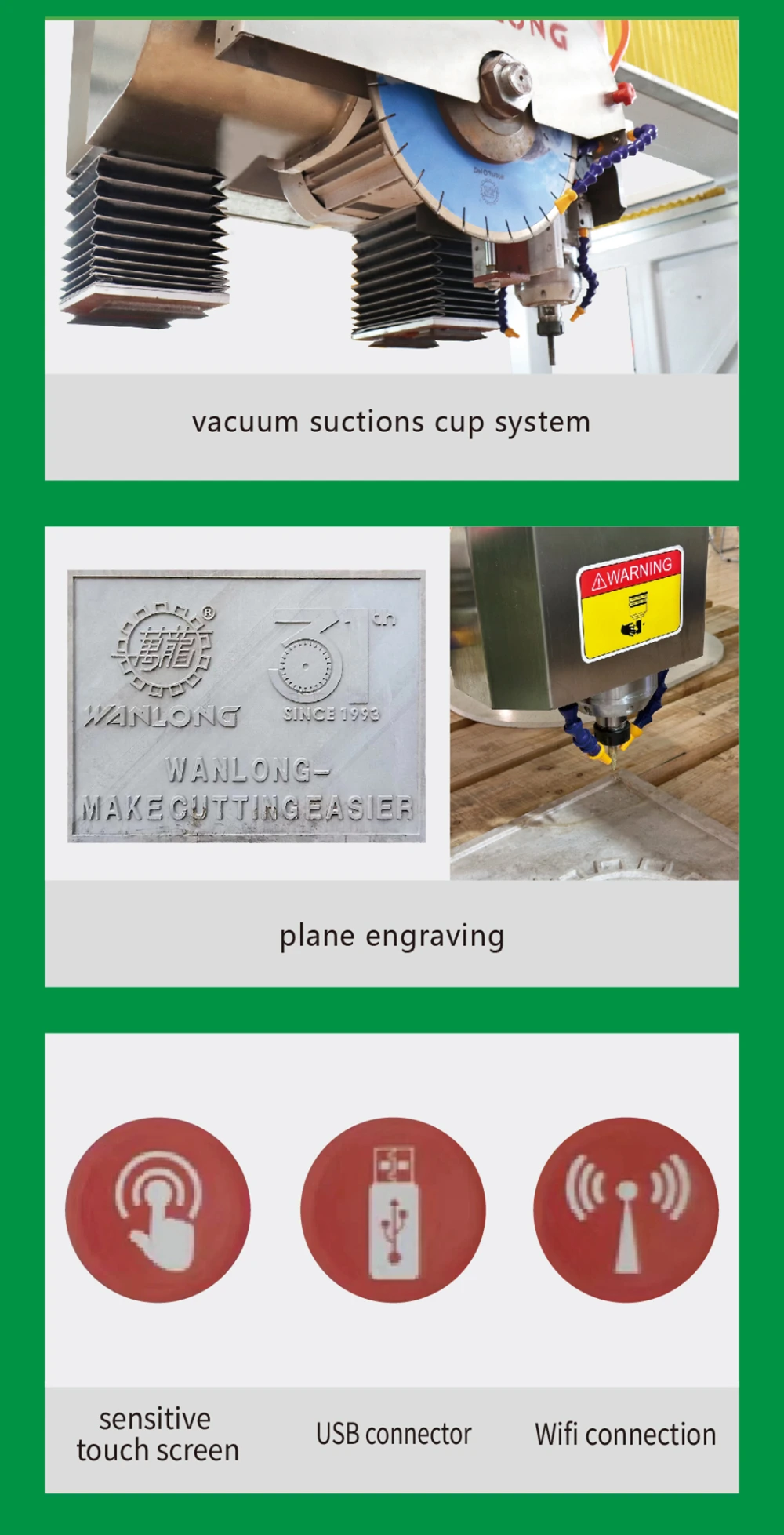

5 With auto sucker to move the slabs and optimizes the processing process

6 Supports DXF file import

7 The pneumatic control box is external for easy observation and adjustment

CNC-5 Jet Pro 650 5-Axis CNC Bridge Cutting And Milling

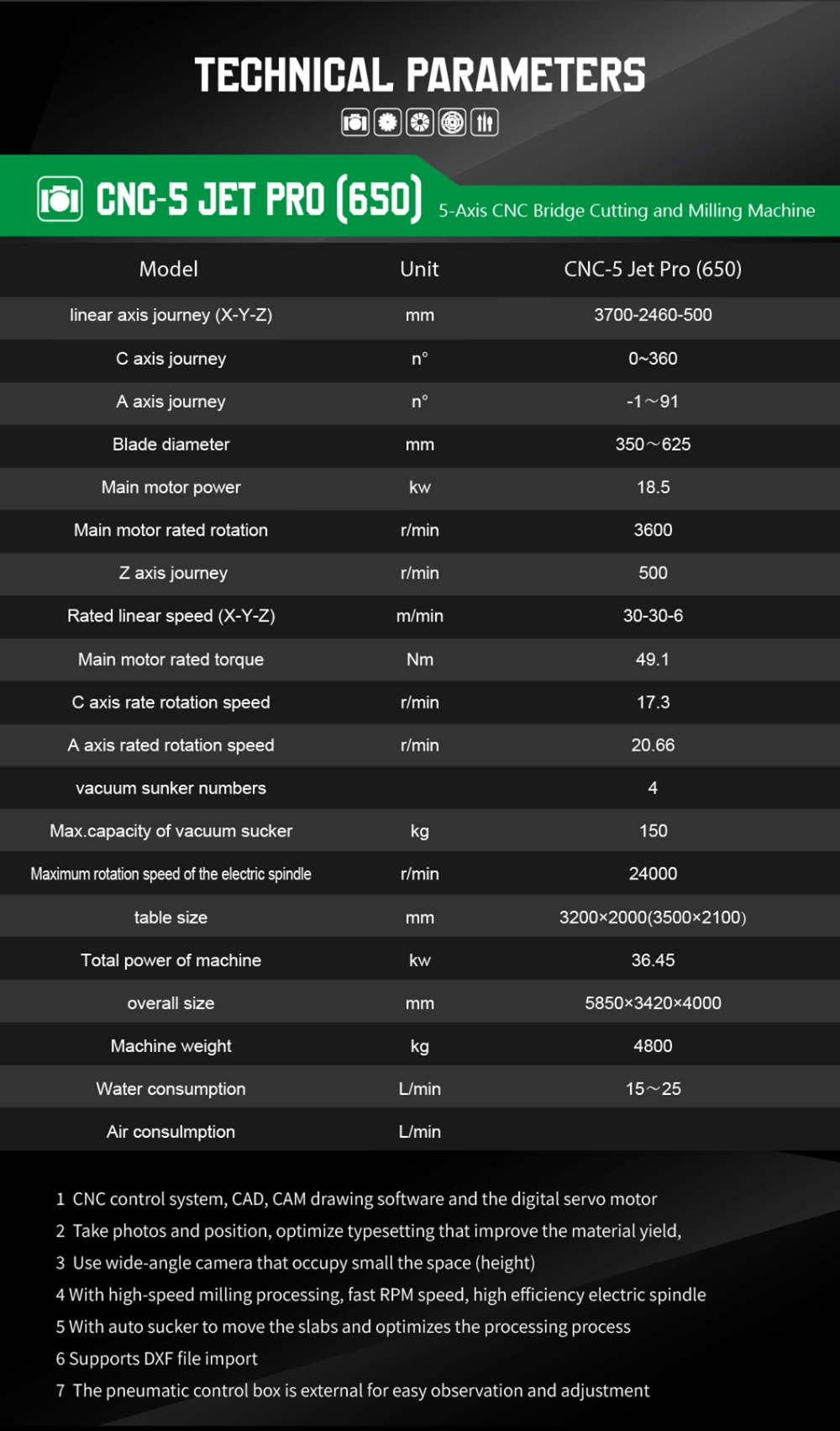

Model	Unit	CNC-5 Jet Pro
Linear axis journey(X-Y-Z)	mm	3700-2460-500
C axis journey	n°	0~360
A axis journey	n°	-1~91
Blade diameter	mm	350-625
Main motor power	kw	18.5
Main motor rated rotation	r/min	3600
Z axis journey	r/min	500
Rated linear speed (X-Y-Z)	m/min	30-30-6
Main motor rated torque	nm	49.1
C axis rated rotation speed	r/min	17.3
A axis rated rotation speed	r/min	20.66
Vacuum sunker numbers		4
Max.capacity of vacuum sucker	kg	150
Maximum rotation speed of the electric spindle	r/min	24000
Table size	mm	32002000(35002100)
Total power of machine	kw	36.45
Overall size	mm	585034204000
Machine Weight	kg	4800
Water Consumption	L/min	15-25
Air consulmption	L/min
