WANLONG
Miltifunctional granite surface processing equipment can realize the functions of remote control of rapid advancement or retreat of the slabs. Automatic air cut-off protection, automatic recognition of lifting and computer touch control in the whole process, etc.

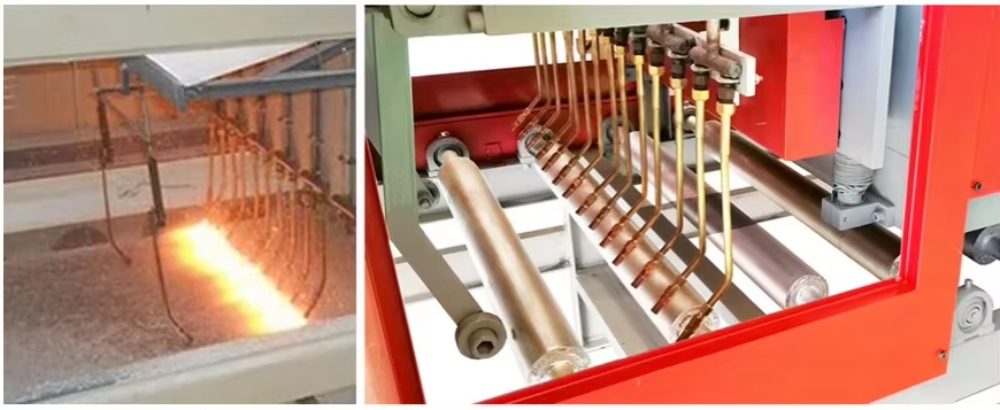

The flaming machine is a kind of surface treatment machine to make the stone surface flamed with multi torch. This surface use a lot for the flooring to anti-slippery. Such machine speed up the productivity.

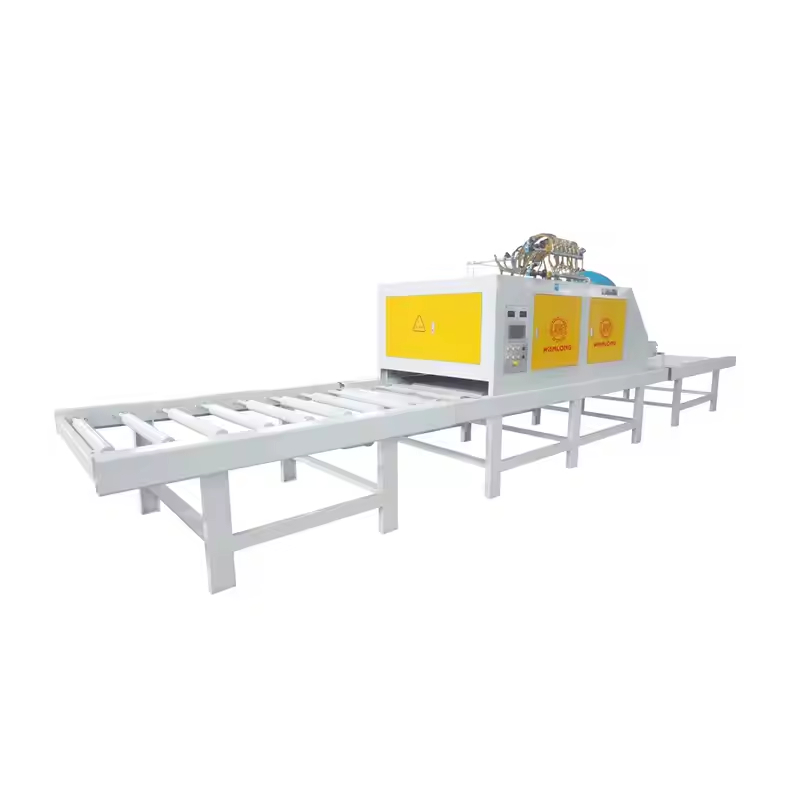

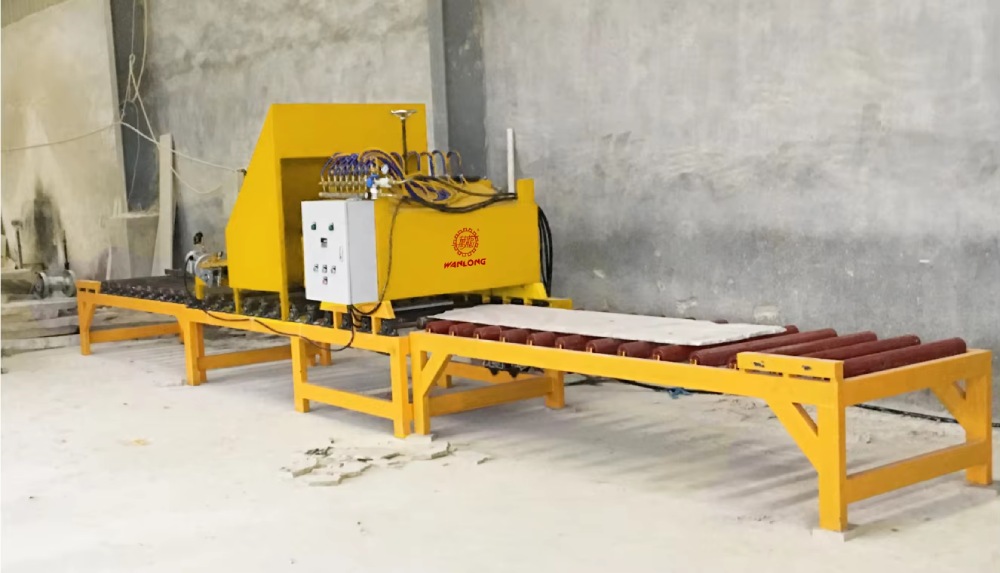

It is a line with main machine and roller tables.
| Model | Unit | LS-2200 | LS-1500 | |
| Slab width (max.） | mm | 2100 | 1500 | |
| Slab thickness （max.） | mm | 150 | 150 | |
| Number of flaming gun | pcs | 21 | 15 | |
| Number of Nozzle | pcs | 42 | 30 | |
| Swing of the flaming gun | With frequency convertor | With frequency convertor | ||
| Entrance of machine | With water pipe, blower and nylon brush | With water pipe, blower and nylon brush | ||
| Exit of machine | With water pipe, blower and nylon brush | With water pipe, blower and nylon brush | ||
| Also it include | Gas gasifier and oxygen gasifier | Gas gasifier and oxygen gasifier | ||
Feature:
Flaming gun nozzles would lift automatically according to the slab’s deformation to make sure best output.
Automatic expired protection, to make sure security.
Full computer touch interface, easy operation.
Feeding slab adopts continuously variable transmission.
Burning gas consumption save 30% compare with the manual burning, lower the cost.
Flow line production way which saved time and increasing the quality and quantity output.
Automatically Alarm, inform user any case at first time.

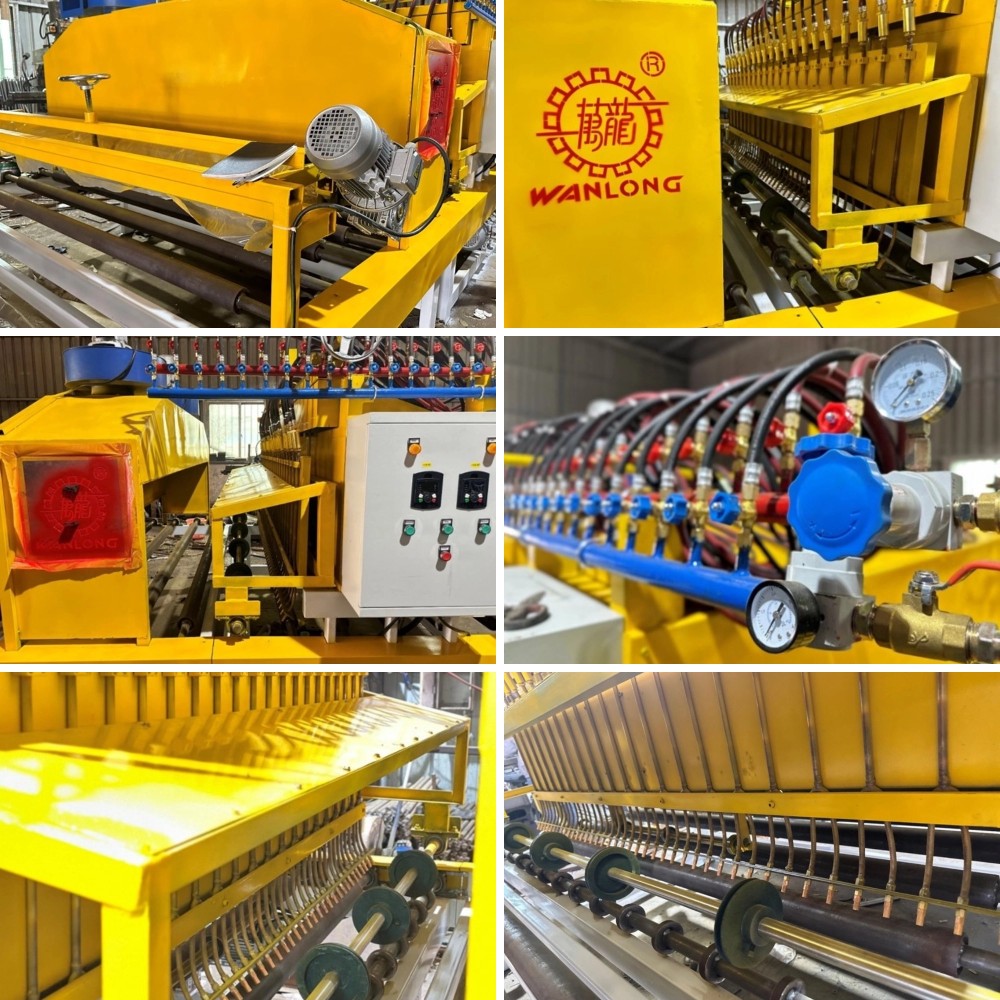

See machine pictures next pages.
