Cutting Machinery/

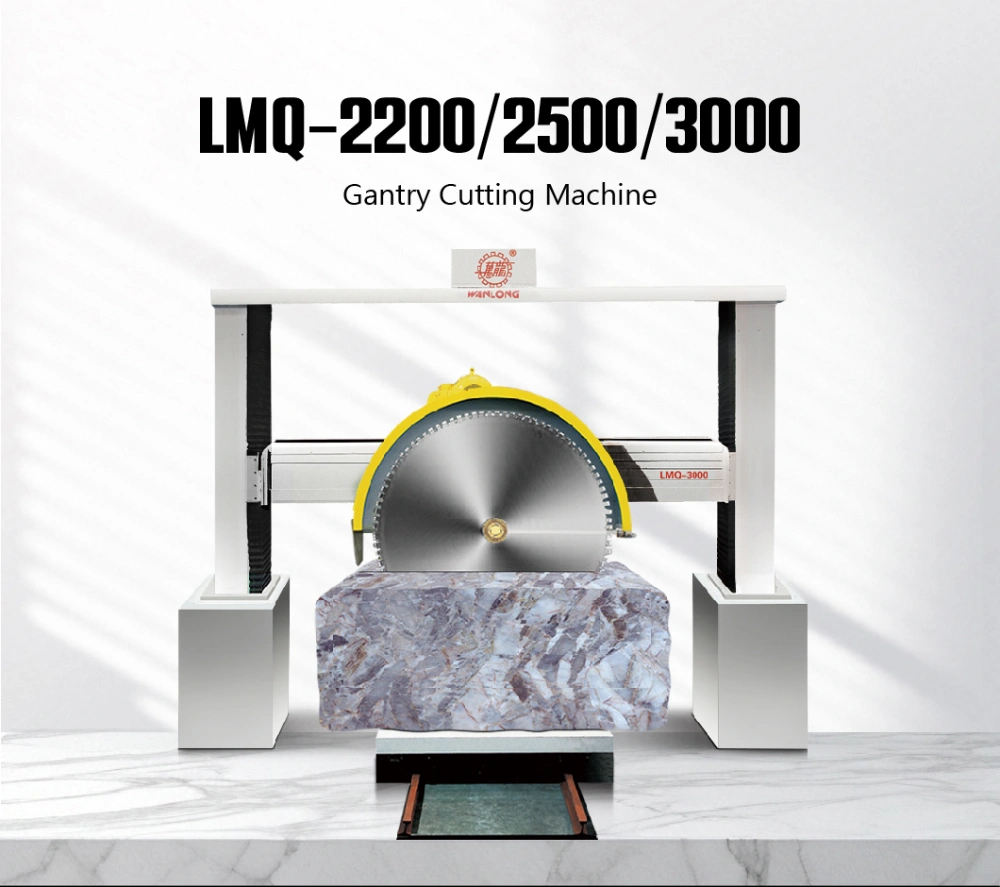

LMQ-2200/2500/3000 Gantry Cutting Machine

Gantry Cutting Machinehas many functions such as strong production capacity, smooth cutting, simple operation, etc., which makes it deeply favored by stone manufacturers.

  • Product Detail
  • Detail Display
  • FAQ
  • Pre-Sales Service

LMQ Gantry Cutting Machine is one of Wanlong’s many cutting machines.It has excellent functions and has passed CE certification.

LMQ Gantry Cutting Machine has many functions such as strong production capacity, smooth cutting, simple operation, etc., which makes it deeply favored by stone manufacturers.

Features and advantages of LMQ block cutting machine:

1) Harden Screw Rod Guided for Blade Vertical Movement and for High Cutting Precision;

2) Gantry Structure with Cast Iron Crossbeam and Side Columns for durable working efficiency;

3) Great Cutting Capacity of 3400L x 2000W x 1350H but Small Area Taken for Machine Installation;

4) European & Japanese Components for Prolong Machine Life, Working Precision and Easy to Operate & Maintain;

5) Block Movement Driven by Standard Single-Layer Trolley and Double-Layer Rotable Trolley upon Customer Request.

6) It’s elevation of blade is driven by crossbeam to increase the cutting flatness and processing scope. The blade’s sliding speed on the crossbeam is adjustable.

Model Unit LMQ-2200 LMQ-2500 LMQ-3000
Max. diameter of blade mm 2200 2500 3000
Max. No. of blades pc 3 1 1
Recommended Blade Combination mm 2200 1600  940 2500 3000

Recommend saw blade thickness

mm 6.5 8 8.0
Main motor power KW 30 30 37
Table dimensions ( L x W ) mm 2000*2000 2000*2000 2000*2000
Max. cutting size (L x W x H) mm 3200*2000*950 3000*2000*1100 2500*2000*1350

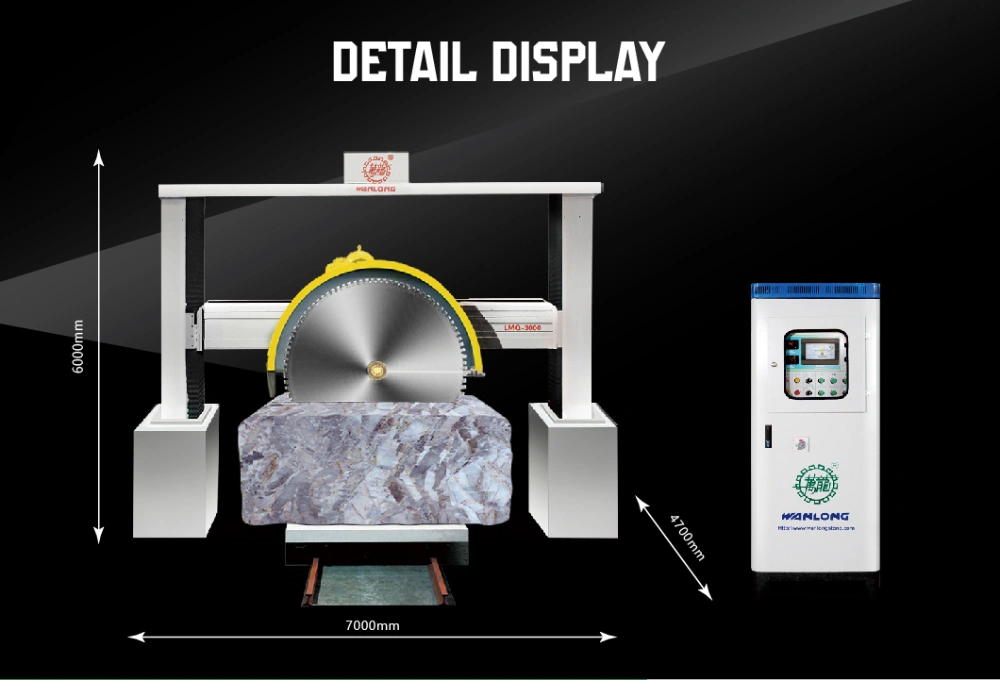

Overall dimensions ( L x W x H ) mm 6600*600*4800 6600*6000*4800 7000*4700*6000
Water consumption m3/h 6 6 6
Approximate weight Kg 9000 9000 9000

The main electrical components are used internationally renown

1、Strong CastingStrong Casting Iron crossbeam and vertical beam to avoid distortion after long- term use

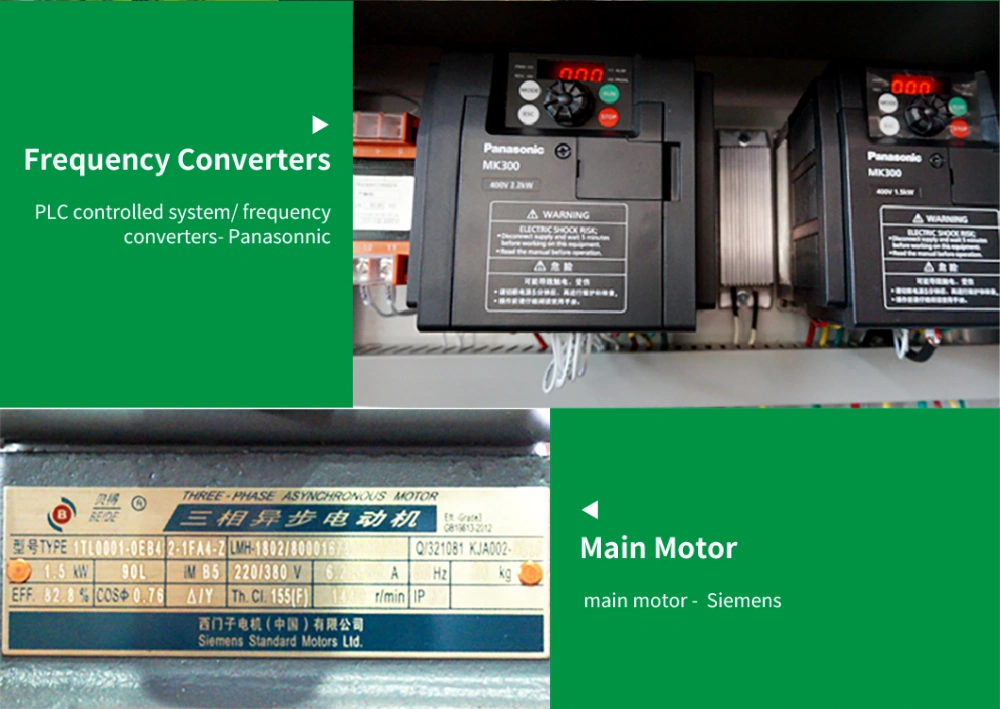

2、Frequency ConvertersPLC controlled system/ frequency converters- Panasonnic;

3、Main Motormain motor – Siemens

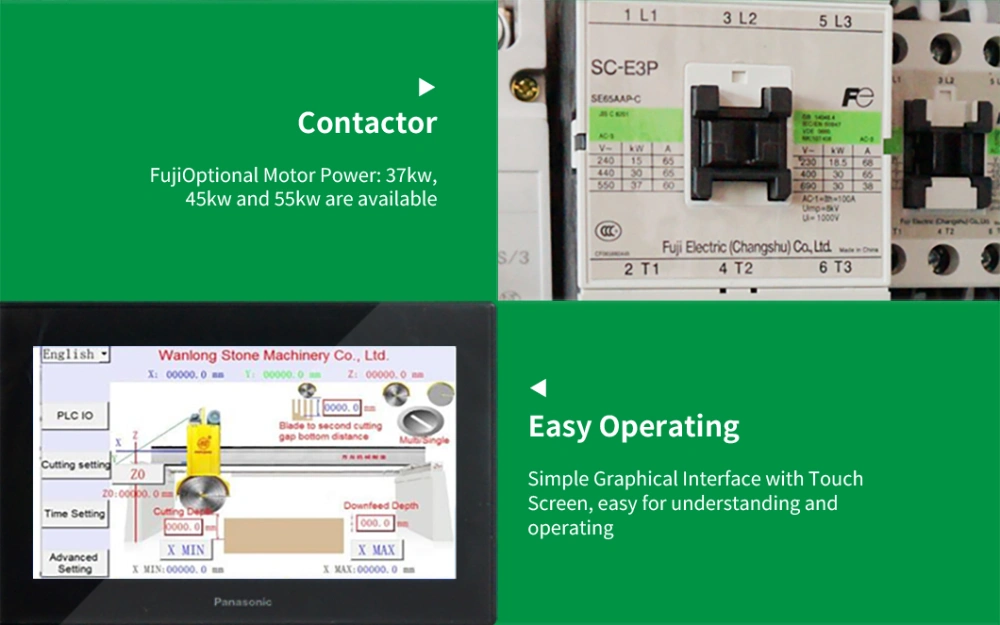

4、ContactorFujiOptional Motor Power: 37kw, 45kw and 55kw are available

5、Easy OperatingSimple Graphical Interface with Touch Screen, easy for understanding and operating

F: If we have already paid, how long will it take to ship the goods?

A: It mainly depends on the quantity of the order. Our monthly production capacity of diamond cutter heads is as high as 3,000,000 pieces. Generally speaking, we can ship the goods within one week after receiving the payment. Specially requested products will be negotiated separately. If you place an order, Wanlong will inform you of an approximate shipping date.

F: If our products are not used well, what should we do?

A: Please provide me with specific feedback information. Analyze the reason: trying to find a solution. If it is Wanlong’s problem and cannot be solved, Wanlong will replace it.

F: How can I buy the most suitable diamond saw blade?

A: 1. Is the saw blade used for sawing, slicing, or other purposes?

  1. The hardness, abrasiveness and granularity of the stone. If possible, please provide samples or pictures.
  2. The machine used for saw blade is bridge cutting, table cutting or brick cutting.
  3. The main motor of the machine, the number of revolutions per minute of the shaft, the cutting depth and the cutting depth.
  4. The thickness of the base body with the proper size of the cutter head. 6 Basic requirements for the life of the saw blade The number of squares cut by each saw blade.

F: How do I know how much freight I need to pay?

A: To calculate the total weight of your goods, first choose a transportation method, confirm the current freight rate, then calculate the freight, and finally confirm the other costs and add them up.

F: After we pay, how long can we arrange the shipping?

A: It depends on the order quantity. Our monthly output of cutter heads is: 3 million. Usually, we will ship the goods within one week of receiving the payment. Special products, special consultations. Wanlong will inform the approximate sailing schedule before you place the order.

F: What is the minimum order quantity?

A: Any number of sample sheets is fine. For regular orders, Wanlong hopes that the weight of the ordered products can reach more than 45 kg (airlines have strict requirements on weight, in addition, the freight for goods under 45 kg is very high)

F: If we want to buy your products, can we provide free samples?

A: Wanlong never provides free cutter heads. This is a high-value product per unit, so very few diamond tool companies will provide free samples. If you want to test, please buy. According to Wanlong’s many years of operating history, people will pay more attention to the tools they get after payment. Although the number and amount of samples are relatively small, its cost is higher than that of ordinary products.

F: We sell saw blades in large quantities in our country, and we only sell them under our own brand logo. Can you put our logo on the saw blade?

A: We hope that you can mark Wanlong on the saw blade, because Wanlong is also a well-known brand in the diamond industry. However, if you insist on printing your company’s logo, we will do it for you, but one percent of the entire saw blade amount will be charged.

F: We plan to buy diamond tools from your company, but how can we confirm your quality?

A: Nowadays, many people like to use Chinese products. Although the quality is not the best, the price is very competitive. Wanlong is a professional with more than 20 years of history in the stone tool industry.

F: Do you have a stone cutter for cutting thin slabs?

A: Yes, we have a slab cutter-infrared automatic bridge stone cutter and integrated bridge stone cutter with the additional function of inclined cutting (0-50 degrees), you can choose manual or automatic. This is an optional feature.

F: Which is the best finger drill or oblique straight tooth with curved teeth?

A: Oblique straight tooth finger drill, this design is conducive to chip removal and water flow.

F: What is the difference between the cutting objects of turbine blades and agglomerated dry slices?

A: Compared with agglomerated dry slices, turbine slices have better continuity when cutting, and are suitable for cutting marble. Agglomerated dry slicing, suitable for cutting granite.

F: What is the difference between dry and wet slices?

A: The main difference is: the way the diamond tip is welded to the substrate is different. Wet cutting uses a brazing process. Half of the dry cutting is laser welding. Laser welding has a higher melting point. In addition to the welding method, another difference is: the carcass. The carcass of dry slices is relatively soft, making it easier to cut without cooling water.

Wanlong Group has a strong sales (pre-sales and after-sales) service team

1. Inquiry and consultation support.

2. Check our factory.

3. Visit the local stone factory to understand the performance of our machine

4. Visit the local stone factory to learn about the performance of our machines

5. After-sales service

Dispatch technicians overseas for machine installation and training on how to operate the machine.

6. Warranty 12 months
