Cutting Machinery/

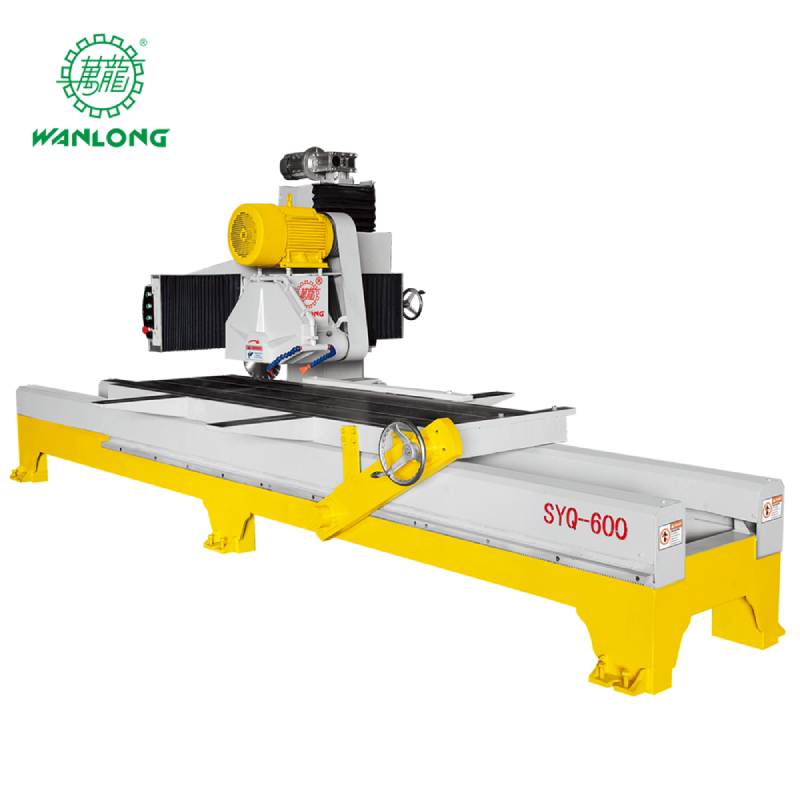

SYQ-600 Manual Stone Cutting Machine

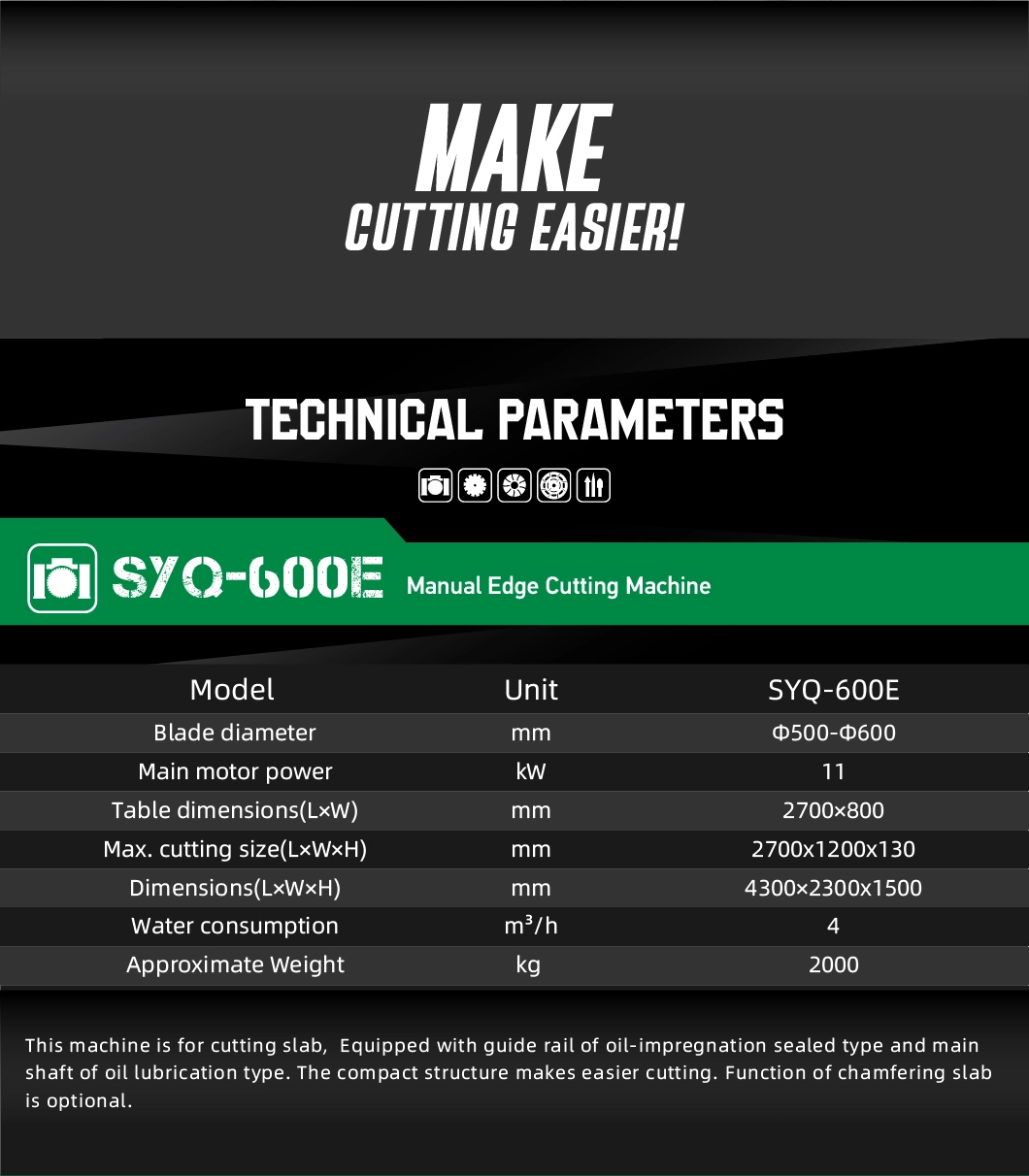

Model

Unit

SYQ-600
Blade diameter

Mm

Φ600
Main motor power

KW

15
Table dimensions(L×W)

mm

3000×730
Max. cutting(L×W×H)

mm

3000×1200×180

Dimensions(L×W×H)

Mm

4900×2200×1700
Water consumption

m3/h

2
Approximate Weight

kg

2500

  • Product Detail
  • Detail Display
  • FAQ
  • Pre-Sales Service

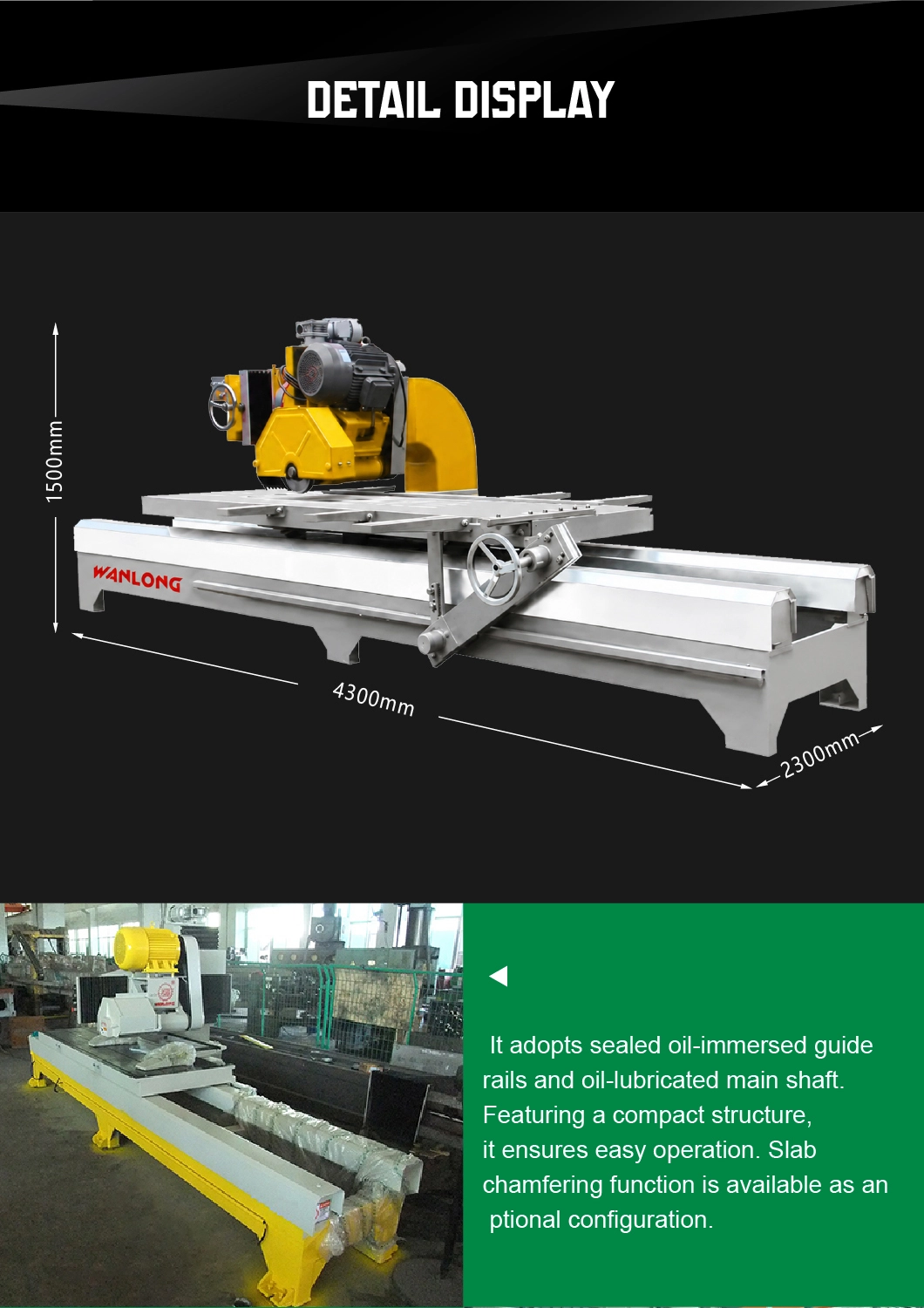

SYQ-600 is an efficient and cost-effective manual stone cutting machine. Equipped with an oil-immersed sealed guide rail and an oil-lubricated spindle, it is often used for slab cutting.

The compact structure makes cutting easier. Function of chamfering is optional.

Five Advantages of SYQ-600 Manual Stone Cutting Machine:

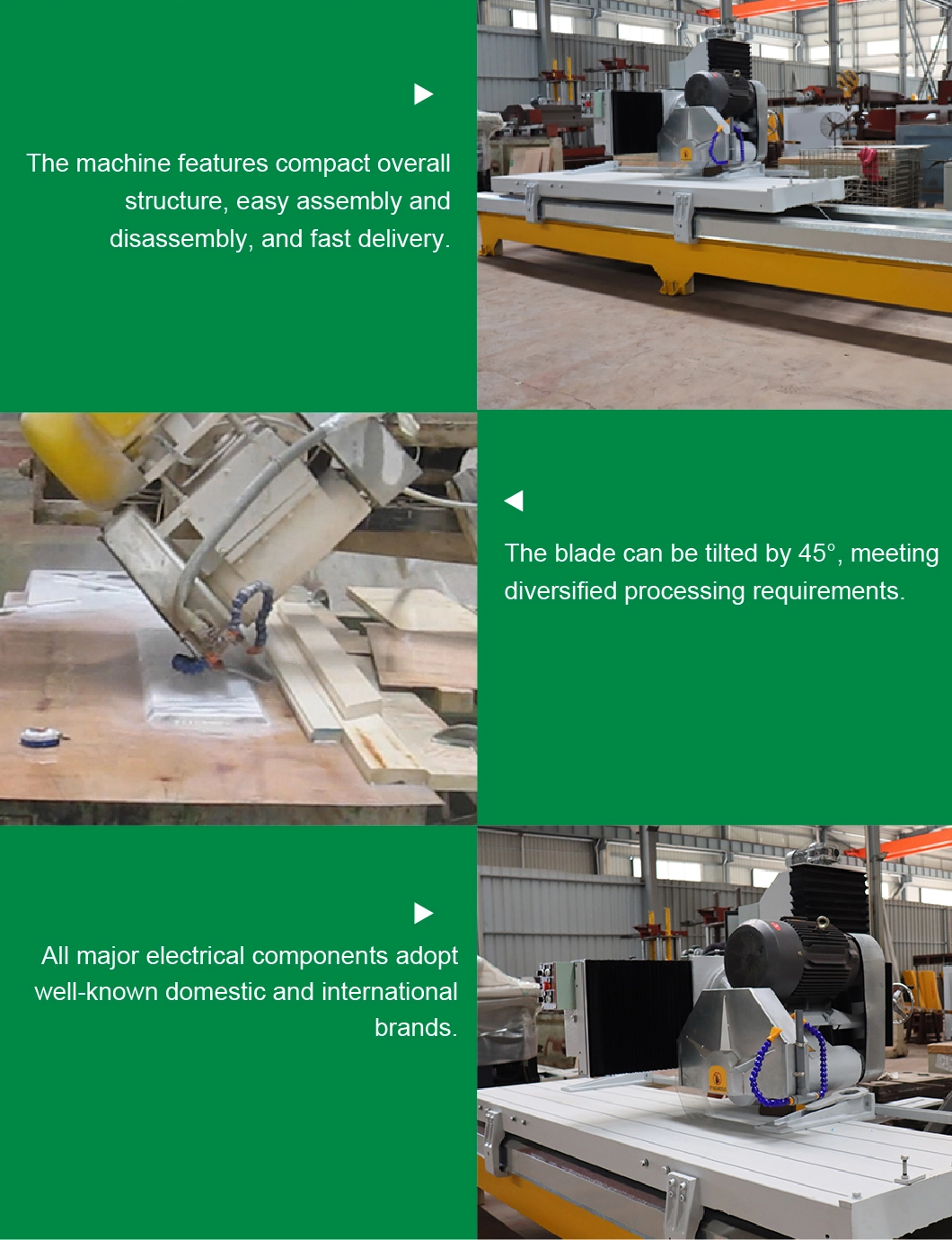

01、Compact structure design with solid steel base

02、Cutting head can rotate ±45°

03、Vertical and horizontal movement of the cutting head is driven by precise screw rod which provides high cutting accuracy

04、Sealed type oil-impregnated guide rails make the worktable move more flexibly and Smoothly

05、High quality electric parts make the whole control system reliable and durable

Five Advantages of SYQ-600 Manual Stone Cutting Machine:

01、Compact structure design with solid steel base

02、Cutting head can rotate ±45°

03、Vertical and horizontal movement of the cutting head is driven by precise screw rod which provides high cutting accuracy

04、Sealed type oil-impregnated guide rails make the worktable move more flexibly and Smoothly

05、High quality electric parts make the whole control system reliable and durable

Wanlong Group has a strong sales (pre-sales and after-sales) service team

1. Inquiry and consultation support.

2. Check our factory.

3. Visit the local stone factory to understand the performance of our machine

4. Visit the local stone factory to learn about the performance of our machines

5. After-sales service

Dispatch technicians overseas for machine installation and training on how to operate the machine.

6. Warranty 12 months

Wanlong Group has a strong sales (pre-sales and after-sales) service team

1. Inquiry and consultation support.

2. Check our factory.

3. Visit the local stone factory to understand the performance of our machine

4. Visit the local stone factory to learn about the performance of our machines

5. After-sales service

Dispatch technicians overseas for machine installation and training on how to operate the machine.

6. Warranty 12 months
