WANLONG
QSQ-1700A-26P PRODUCT FEATURES:

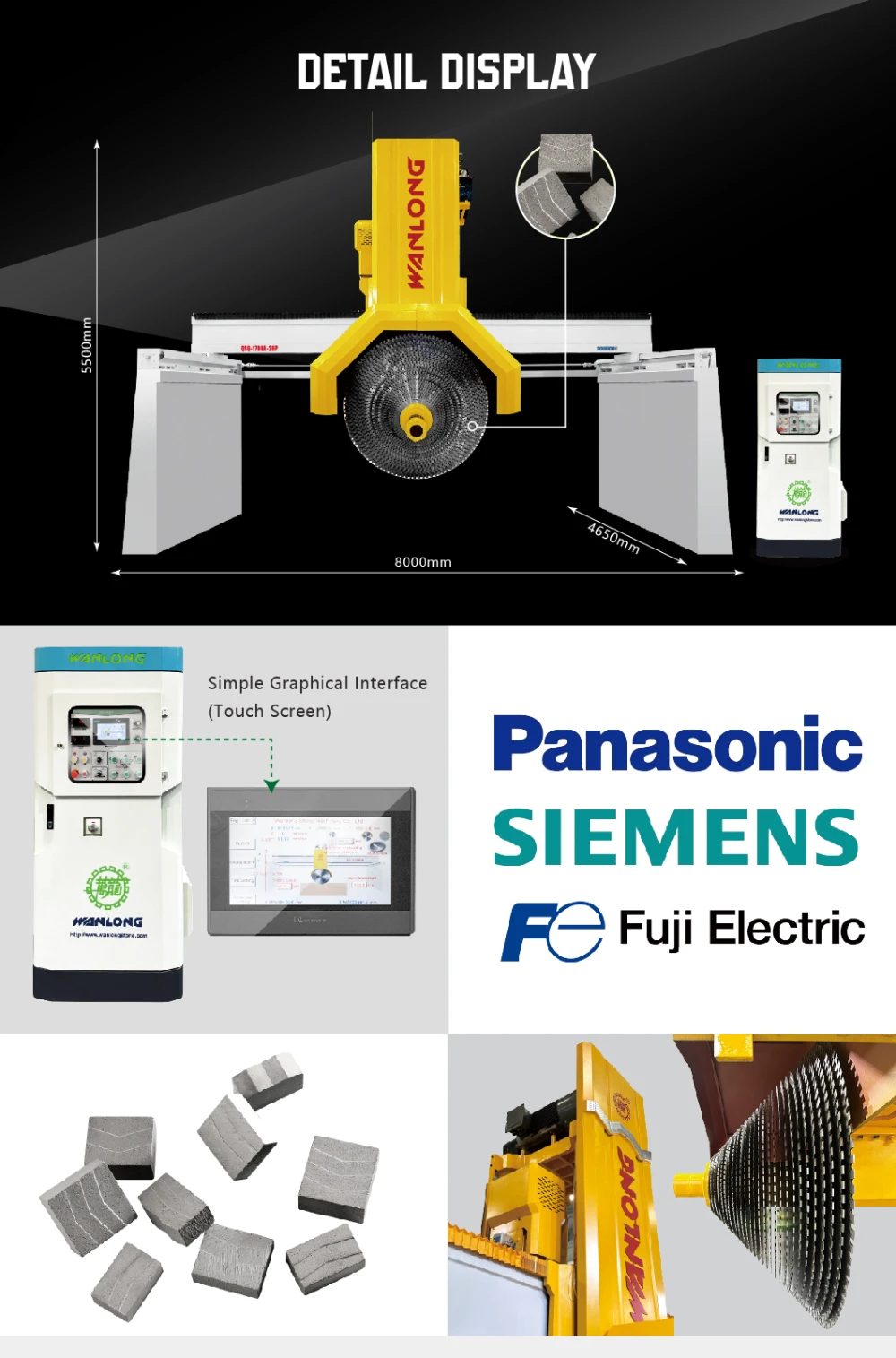

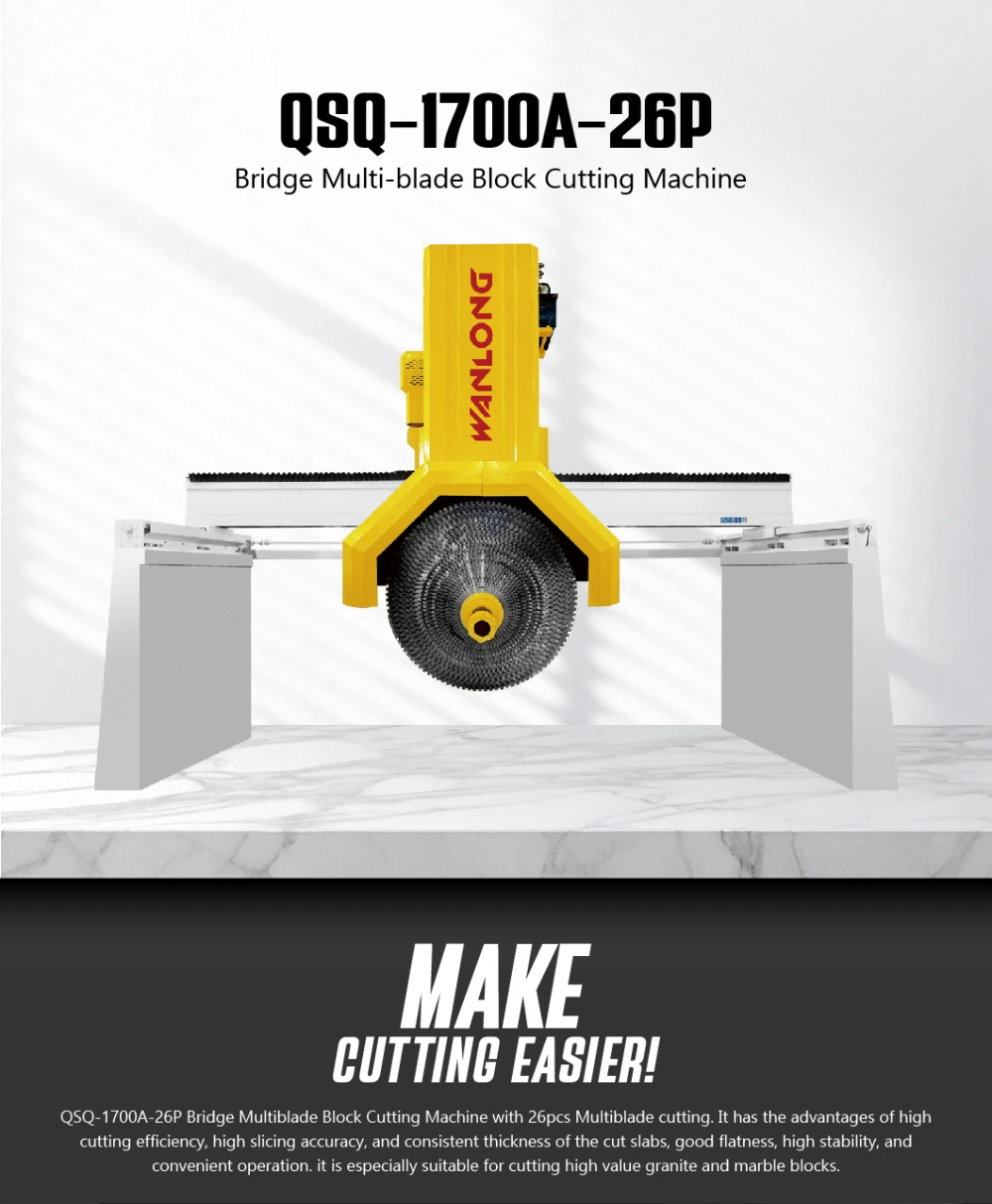

QSQ-1700A-26P Bridge Multiblade Block Cutting Machine with 26pcs Multiblade cutting. It has the advantages of high cutting efficiency, high slicing accuracy, and consistent thickness of the cut slabs, good flatness, high stability, and convenient operation. it is especially suitable for cutting high value granite and marble blocks.
| Model | Unit | QSQ-1700A-26P | QSQ-1700B-26P | QSQ-1700C-26P |
|---|---|---|---|---|
| Crossbeam size | mm | 7500×800×900 | 9500×800×900 | 9500×800×900 |
| Vertical beam length | mm | 4000 | 4000 | 6000 |
| Pillar diameter | mm | 210 | 210 | 210 |
| Main motor power | KW | 90(110/130) | 90(110/130) | 90(110/130) |
| No. of blade | pcs | 26 | 26 | 26 |
| Recommended blade combination | KW | 1700/1650/1600/1550/1500/1450/1400/1350/1300/1250/1200/1150 1100/1050/1000/950/900/850/800/750/700/650/600/550/500/450 |
||
| Max.Cutting size(L x W x H) | mm | 4100×2100×650 | 6100×2100×650 | 6100×2100×650 |
| Water consumption | m³/h | 45 | 45 | 45 |
| Overall dimensions (L x W x H) | mm | 8000*4650*5500 | 10000*4650*5500 | 10000*6650*5500 |
| Approximate weight | kg | 23000 | 26000 | 27000 |
| Remarks | pc | One picec block | Two picecs block | Four picecs block |
